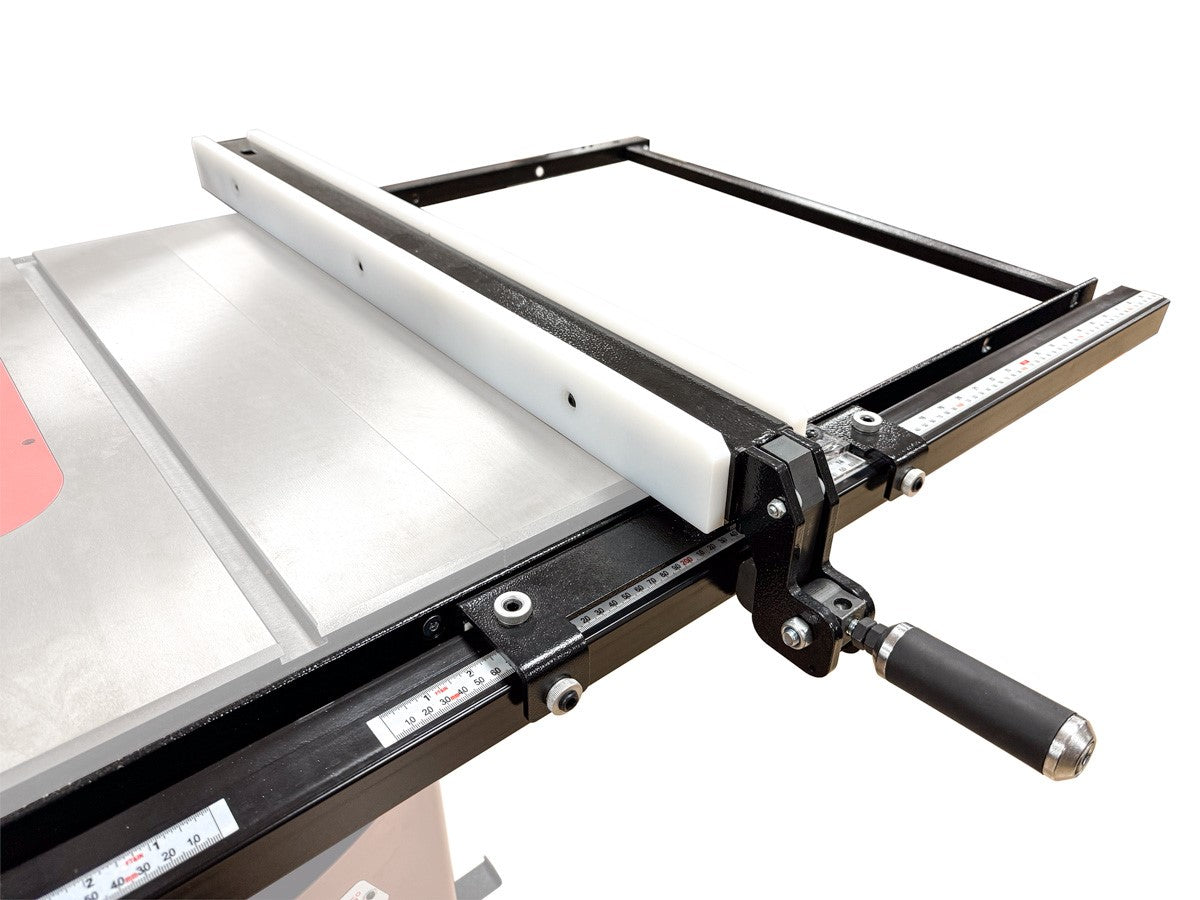

Sherwood Aftermarket Table Saw Fence 850mm Fence Arm 1480mm Rail

Sherwood’s Table Saw Fence is an easy and powerful upgrade for your table saw.

The fence is a crucial component of any table saw. A poor-quality or worn-out fence can only give you inaccurate cuts with a high risk of kickback. Replace your old unit with Sherwood’s Aftermarket Fence and experience the increased precision and improved safety.

Accuracy

The Sherwood Table Saw Fence is rock solid. Once it is aligned with the blade, there is zero lateral or rotational movement, no matter where it is positioned along the rail. The fence locks into position with a cam-action lever, allowing you to easily make one-handed adjustments, while the high-visibility scale delivers easy, precise and repeatable settings. The side panels are made of HDPE plastic, an abrasion-resistant material that allows smooth, judder-free material feeding.

Safety

It is absolutely vital that your tables saw’s fence is able to be perfectly aligned with the blade. A misaligned fence will cause kickback as it causes the workpiece to be caught by the rear side of the blade and flung towards the operator with great force. A fence that moves even a fraction of an inch, or a fence that can not be easily squared up, is an injury waiting to happen. Sherwood’s Table Saw Fence is easy to align - and once aligned, it will remain perfectly stationary throughout any ripping operation.

Compatibility

The Sherwood Table Saw Fence is specifically designed for American-standard 685mm (27in) deep table saw tops, and can be easily modified to suit either shallower or deeper tables. Both the front and rear rails bolt directly to the table top with standard 300mm hole centres, but the mild steel rails are easily drilled out to suit other spacings.

Features

• Easily installed on almost all table saws with cast-iron tops
• Solid steel tube fence rails with capacity 850mm to right and 320mm to left of blade
• Rigid steel 860mm-long fence arm With Low Friction HDPE Fence Surfaces
• Steel fence locking arm with heavy-duty cast-iron and alloy fence clamp for rock-solid locking action against rails
• Clear magnified fence cursor to accurately align against scale

Specifications

Manual Handling Surcharge (Overlength Item)

Any item that measures over 1.2m once packaged cannot be sent through automatic freight sortation machines and must be handled manually. There is a surcharge of $12.00 charged by the freight company to manually handle this freight. Timbecon passes this charge on at cost.
